Post support - H, L, T and U Types

The post support is used to protect the traffic signs.

PSU-01: Post support can be used in traffic signs.

Post support is a kind of post anchor which give the post necessary protection against the attack of termites and moisture. It provides a quick and affordable method of fastening timber post to the concrete surface. Additionally, the zinc plating makes means it is corrosion resistant so that it can be used for a very long time and makes your cost effective.

Advantages

  • Comply with building code requirements.
  • Long term of providing protection.
  • Enhance the stability of the post.
  • Perfect for timber post.
  • Anti-rust.
  • No need of digging and concreting.
  • Can be used in humid environments.

According to the shape of our post supports, we classify our products into four types: type H, type L, type U, type T.

Type H

No contact with the ground to keep the post free of rotting and corrosion. Wooden post can be easy and firmly fixed by bolts. It is perfect for carports, fences, play sets, pergolas, arbors and balconies, etc.

A H type post support with its ichnography and graphic model.

PSU-02: Type H post support.

  • Height (a): 300–600 mm
  • Length (b): 60–300 mm
  • Width (c): 50–120 mm
  • Thickness: 6 mm
  • Custom sizes and shapes are available.

Type L

No contact with the ground to prevent the wooden post from the damage of moisture environment. Meanwhile, it helps to resistant the attack form termites. It is perfect to be used where the post is placed against a wall or step, which means it can only be fixed from one side.

Twp type L post supports with and without plates, and a graphic model about sizes.

PSU-03: Type L post support.

  • Height (a): 100–140 mm
  • Length (b): 60–150 mm
  • Width (c): 50–90 mm
  • Base length (d): 60–90 mm
  • Thickness: 3–6 mm
  • Surface: galvanized or color coated.
  • Custom sizes and shapes are available.

Type U

Support the base of concrete footing and and fence post. It features its specially designed U shape, by which the post can be protected from corrosion and rust. We can classify our U-shaped post anchor to three type according to pin and plate as follow:

Type U-A

With no pins and plates. It works through the method of protecting the fence post by avoiding the direct contact to the ground, which may cause rot and rust to the post.

Four type U-A post supports in different shapes.

PSU-04: Type U-A post support.

  • Height: 100–160 mm.
  • Length: 60–150 mm.
  • Width: 50–130 mm.
  • Thickness: 3–6 mm.
  • Surface: galvanized or color coated.
  • Custom sized and shapes are available.

Type U-B

With pins but without plates. Compared to type U-A, this kind of post anchor not only protects the post from corrosion, but also fixed it in the desired place firmly.

Three type U-B post supports in different shapes.

PSU-05: Type U-B post support.

  • Height: 100–300 mm.
  • Length: 50–150 mm.
  • Width: 50–130 mm.
  • Thickness: 3–6 mm.
  • Pin diameter: 4–10 mm.
  • Surface: galvanized or color coated.
  • Custom sizes and shapes are available.

Type U-C

With pins and plate, by which it can keeps the concrete footing and fence post totally off the ground. So it can make sure the woods free of damage of termites. Additionally, the holes on plates means thar it is easy and firmly to fix the post anchor on the cement flooring. So it is widely used in concrete structure.

  • Type U-C-2: The height of the pin can be adjusted.
  • Type U-C-3: The length of the U-shape can be adjusted.
Three type U-C post supports in different shapes.

PSU-06: Type U-C post support.

  • Height: 100–300 mm.
  • Length: 50–150 mm.
  • Width: 50–130 mm.
  • Thickness: 3–6 mm.
  • Pin diameter: 4–10 mm.
  • Plate side-length: 40–160mm depends on your requirements.
  • Surface: galvanized or color coated.
  • Custom sizes and shapes are available.

Type T

This kind of post anchor often be used where have a strict requirement for “hiding” the post anchor to keep the construction beauty. The post must be slotted at the bottom and fasten with the post anchor by bolts.

We mainly supply three kinds of T type post anchors as follow:

  • Type T-1: with a inverted T-shaped head and a spin to screw into the ground
  • Type T-2: with a plate to fix the post firmly off the ground.
  • Type T-3: features its T-T shape to prevent the contact between the post and the ground.
Two type T post supports with and without plate.

PSU-07: Type T post support.

  • Height (a): 100–300 mm.
  • Length (b): 50–150 mm.
  • Width (c): 50–130 mm.
  • Thickness: 3–6 mm.
  • Pin diameter: 4–10 mm.
  • Plate side-length: 40–160 mm depends on your requirements.
  • Surface: galvanized or color coated.
  • >Custom sizes and shapes are available.
A type T post supports with ichnography about sizes.

PSU-08: Type T-3 post support.

  • Height (a): 50-300mm.
  • Length (b): 50-150mm.
  • Width (c): 30-130mm.
  • Plate length (d): 70-200mm.
  • Plate width (e): 35-140mm.
  • Surface: galvanized or color coated.
  • Custom sizes and shapes are available.

Applications

Timber construction, fence, mailbox, traffic lights, sheds, gate, etc.

A galvanized post support is holding the wooden post in the garden.

PSU-09: Post support for garden post supporting.

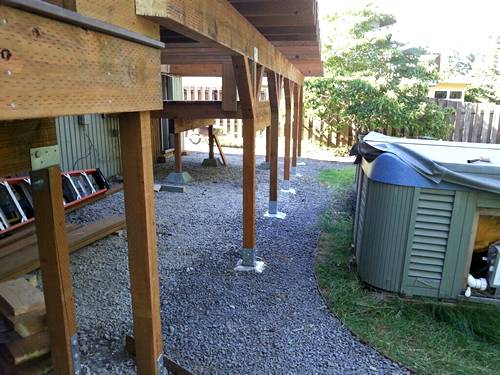

Several posts of timber buildings are supporting with the galvanized post support.

PSU-10: Post support for timber building support.
