Electrical Ground Screw Drivers – Different Input Power for All Ground Screws

A piece of manual electric ground screw driver on white background.

Electric ground screw driver is efficient and portable.

Electric ground screw driver is a manual operating tools, which is specially designed for small-scale construction of ground screws, such as fences, turnstiles, mini billboards, road signs.

Compared with traditional ground screw drivers, the electrical ground screw driver is lightweight and easy operated by single worker in narrow space or low voltage solar plants. It can complete more than 20 pieces installation with two people in one day. This can save labor costs and improve working efficiency.

Main feature

  • High speed. At least 8 to 12 rotations per minute, the drilling speed is clearly faster.
  • Stable operation. Without vibration and impact during working.
  • Excellent motor. It won't overheat even being operated for a long time.
  • No tilting during work. It is drive vertically with support tube to prevent tilting during working.
  • Wide range of adaptor options. We can supply wide range of adaptor to suit all kinds of ground screws and piles.
  • Installing spiral ground screw quickly and accurately.
  • Flexible transport method and reasonable structure.
  • Low working noise.
  • Lightweight and portable.
Main Types of Electric Ground Screw Driver
Model JS-EAD04 JS-EAD06 JS-EAD07
Frequency 50–60 Hz 50–60 Hz 50–60 Hz
Rated Voltage 220 V / 110 V 220 V 220 V
Rated Input Powder 1800 W 2000 W 4000 W
Max. rated Torque 1800 N⋅m 3000 N⋅m 4800 N⋅m
Rotate Speed (r/min) 12 12 11
Maximal Ground Screw 76 × 1600 mm 76 × 1800 mm 114 × 2500 mm
Host Machine Net Weight 12 kg 17.5 kg 24.6 kg
Picture A 1800 W electric ground screw driver with support tube and ground screw on white background.

JS-EAD04 1800 W electric ground screw driver

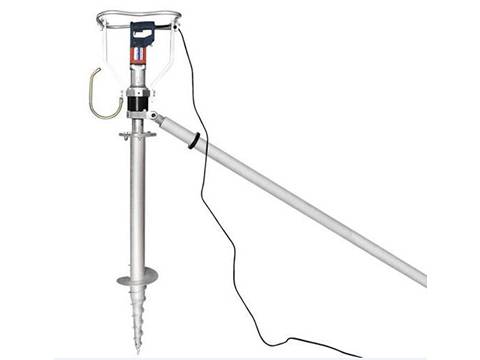

A 2000 W electric ground screw driver with support tube and ground screw on white background.

JS-EAD06 2000 W electric ground screw driver

A 4000 W electric ground screw driver with support tube and ground screw on white background.

JS-EAD07 4000 W electric ground screw driver

A worker is installing ground screw with 1800 W 110 V electric ground screw driver.

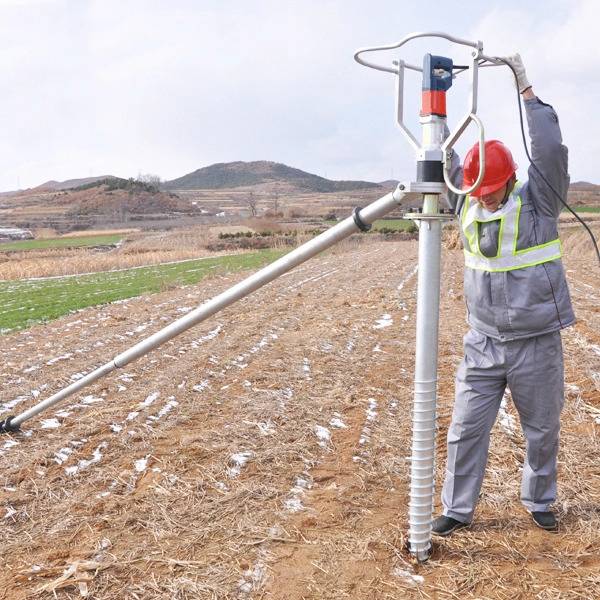

A worker is installing ground screw with 14000 W 120 V electric ground screw driver.
